Full Color Indoor P3.91 In Die Casting Aluminum Cabinet For Stage Video LED Display
Product feature
1)Lightweight, space-saving and labour-saving.
2)Nice appearance and simple structures.
3)Quick locking methods, no tools installation.
4)With indicator lights and backside flexible door, easy to test and maintain.
5)High refresh rate, HD video performance.
6)Good prices and aftersales services.
Technical information
| Description | Technical parameter |
| Unit module | Module size | 250*250mm |
| Pixel pitch | 3.91mm |
| Pixel density | 65536dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | SMD 3 IN 1 2121 |
| Pixel resolution | W:64dots*H:64dots |
| Cabinet | Dimension | 500mm*500mm*75mm |
| Quantities of module | 4pcs/8pcs |
| Power supply | 1pcs |
| Thermal discharge | Fan*2pcs |
| Best viewing angle | 120 |
| Temperature | Storage: -35°C~+85°C |
| Working: -35°C~+85°C |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V±10% |
| Average power consumption | 200-320W |
| Max. Power consumption | ≤650W/sqm |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Software | LED studio |
LED Screen cabinet
Size : 500* 500mm
Apllication Fields
At first , our screen use Nova system and MBI 5124IC , so that brightness and refresh rate can be high. On average , brightness can be about 2000cd/sqm , and refresh rate can be up to 4096HZ.

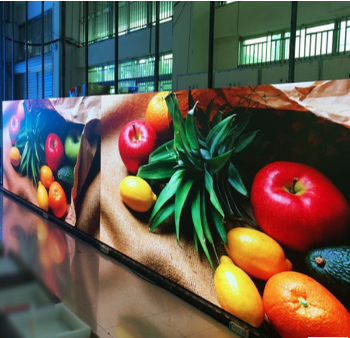

As for performance and function , it is relatively small pixel for stage rental led screen . can be used in important and formal scenes. And it is suitable for stgae rental , congress, wedding ceremony , parties ,and many events.
About the price , it is reasonable, not too high for distributors , which is economic .
Services
1.Technical training
Out company will train users based on the manual , system use and maintenance guide .
The training include system use, system maintenance and system protection ,after sales serives. mode.
A. Phone service
Please provide your name and phone number ,and your product detailed fault problem , our technical engineer will offer tecnhnical support and guidance according to your description .
B. Real-time conmmunication service
Cheng Wen after-sales service engineer will help you solve fault problem through whtsapp , skype & e-mail , for example , software or demo video that shows how to operate and control the system .
C.Remote control service
We can remotely link customers ' computers , in order to install and set up softwares in your computers
,and to dispose of technical faults of led display system.
How to get suitable screen ?
(1) The scenes that display is used for.
(2) Visable distance , viewing angle
(3) Requirement of cabinet resolution
(4) requirement of installation environment
(5)Budget
